The high-elastic membrane carrier is designed for fragile devices in different shapes and sizes. This unique design prevents any damage to the device during storing, handling
or shipping. High-elastic membrane carrier can be used for various crystal products, optical devices
& opto-electronic components.
TYPE: HP3-3818
Outside Dimension: 40 x 40 x 18mm
Membrane area: 28 x 28mm
Colour: Transparent

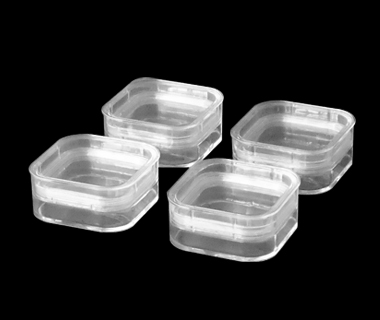

TYPE: HP3-5525
Outside Dimension: 55 x 55 x 25mm
Membrane area: 43 x 43 x 22mm
Colour: Transparent
TYPE: HP3-7512
Outside Dimension: 75 x 75 x 12mm
Membrane area: 60 x 60mm
Colour: Transparent
TYPE:HP3-7516 Dimension:
76 x 79 x 16mm
Membrane area: 60 x
56 x 10mm Colour: Transparent

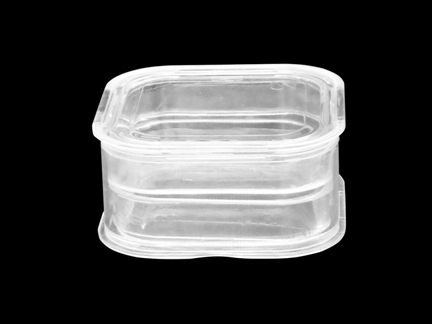

TYPE: HP3-7530
Outside Dimension:
75 x 75 x 30mm
Membrane area:
66 x 66 x 25mm
Colour: Transparent
TYPE: HP3-8018
Outside Dimension: 80 x 40 x 18mm
Membrane area: 66 x 28mm
Colour: Transparent

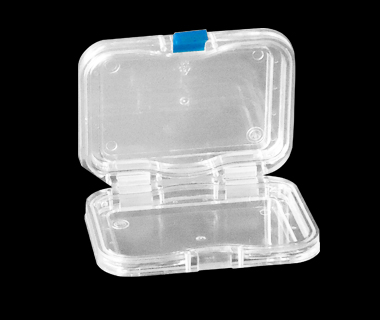

TYPE: HP3-10025
Outside Dimension:
100 x 75 x 25mm
Membrane area: 81 x
56 x 20mm
Colour: Transparent

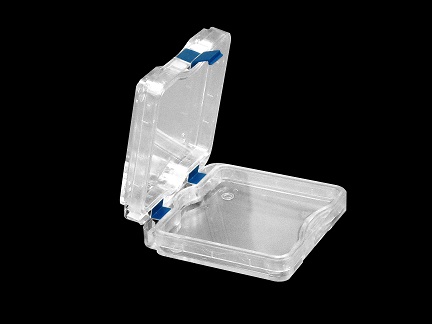

TYPE: HP3-10032
Outside Dimension:
100 x 100 x 32mm
Membrane area: 90 x
75 x 28mm
Colour: Transparent
TYPE: HP3-100A Outside Dimension: Dia.105 x H 24mm
Membrane Area: Dia.83mm (3.27")
Colour: Transparent
HP3-100 can hold 3inch wafer or slightly
larger wafer.

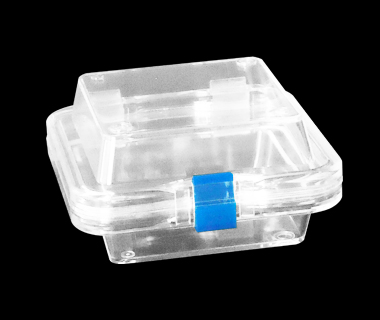

TYPE: HP3-10050
Outside Dimension:
100 x 100 x 50mm
Membrane area: 81 x
81 x 45mm
Colour: Transparent
TYPE: HP3-12550 Outside Dimension:
125 x 125 x 50mm
Membrane area:
106 x 106 x 45mm
Colour: Transparent
TYPE: HP3-15075
Outside Dimension:
150 x 100 x 75mm
Membrane area:
131 x 81 x 70mm
Colour: Transparent
TYPE: HP3-17525
Outside Dimension: 175 x
100 x 25mm
Membrane area:
156 x 81 x 20mm
Colour: Transparent

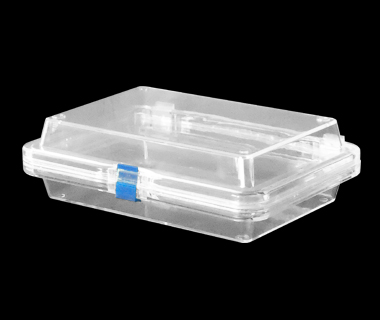

TYPE: HP3-17550 Outside Dimension:
175 x 125 x 50mm
Membrane area:
156 x 106 x 45mm
Colour: Transparent

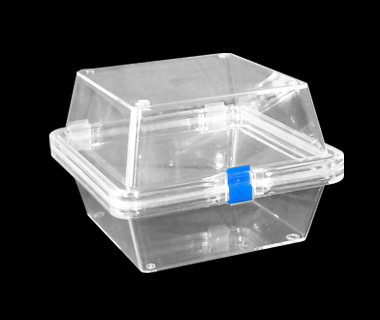

TYPE: HP3-150100 Outside Dimension:
150 x 150 x 100mm
Membrane area:
131 x 131 x 95mm
Colour: Transparent

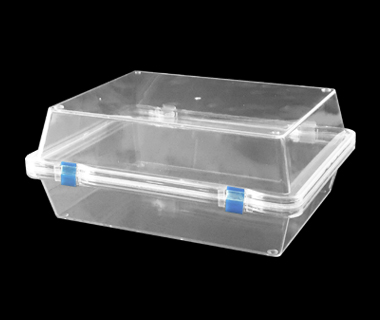

TYPE: HP3-250100 Outside Dimension:
250 x 200 x 100mm
Membrane area:
231 x 181 x 95mm
Colour: Transparent
TYPE:HP3-10030B Outside Dimension:
100 x 50 x 30mm
Membrane Area:
90 x 36
x 26mm
Colour: Transparent
TYPE:HP3-10030A
Outside Dimension:
100 x 75x 30mm
Membrane area: 90 x
60 x 25mm
Colour: Transparent
TYPE:HP3-10030C
Outside Dimension:
100 x 100 x 30mm
Membrane area:
90 x 82 x
25mm.
Colour: Transparent
TYPE:HP3-12530 Outside Dimension:
125 x 100 x 30mm
Membrane Area:
116 x 82 x
25mm
Colour: Transparent
TYPE : HP3-16030 Outside Dimension: L160mm x W50mm x H30mm
(6.3" x 1.97" x 1.18") Membrane Area: L140mm x W 30mm (5.5" x 1.18") MAX. Holding Diameter: 10mm (0.394") MAX. Holding Length: 130mm (5.12")

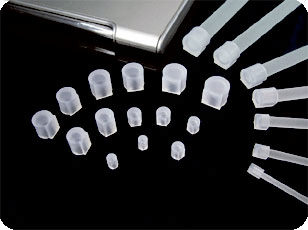

Membrane Carrier for Crystal
Rod
This innovative solution is specially designed for
fragile crystal rods
or devices of rod shape.
The unique structure can protect delicate parts
during transport, processing, inspecting and assembly
The
patented design protects crystal rods by preventing any direct contact
with delicate coating end surface.
Properties and Advantage
Special elastic membrane can envelop the rod tightly, and prevent any damage during storing and shipping. No need for foam, sponge and any other inserts.
Unique dustproof cap prevent contact with both coating end surface of rod, and avoid any outward contamination.
Perfect flexibility. Several
rods, same or different size, can be put into one carrier safely and
economically
