Introduction:
The module carrier is a solution for
fragile devices. It is designed to protect
delicate parts during transport, processing, inspecting
and assembly.
The unique module
carrier's structure can be customized to
specific shape to hold the devices exactly and safely.
Listed below are just
examples, we can make shapes for your particular
requirement!

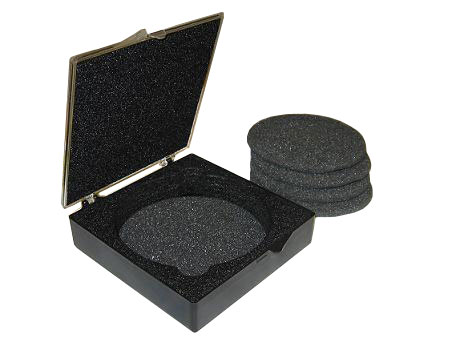

i.e 2", 3" wafers, C-mount, 14-pin butterfly package, HHI
package, etc. |
|

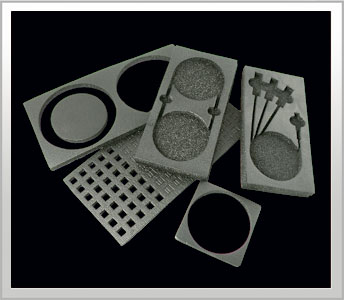

IXPE Conductive Foam has super conductivity to eliminate electrostatic permanently. Non-contaminating , non-corrosive and
non-sloughing, low piercing force can ensure fragile and delicate parts to be inserted safely,
cleanly and easily. IXPE foam is an ideal packing material for crystal, opto-electronic components,
optical parts, glass, IC, PCB and delicate devices.
|
|
 |
 |
TYPE:HP4-5510
Outside Dimension: 55mm x
55mm x
10mm
Inside Dimension: 51mm x 51mm x 7.0mm
Cover: Transparent
Body: Black |
TYPE:HP4-8512
Outside Dimension: 85mm x 85mm x
12mm
Inside Dimension: 81mm x 81mm x 8.5mm
Cover: Transparent
Body: Black |
|
 |
 |
TYPE:HP4-1306
Outside Dimension: 130mm x
60mm x
36mm
Inside Dimension: 127mm x 57mm x 33mm
Cover: Transparent
Body: Black |

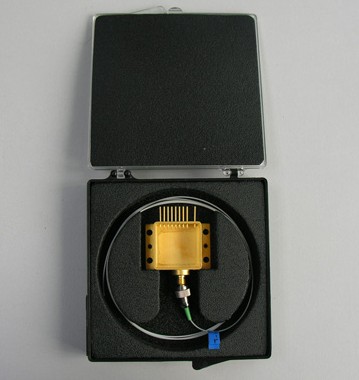

TYPE:HP4-12033
for HHL type of package
Dimension: 116mm x 116mm x 30mm
Cover: Transparent
Body: Black |
|
 |
 |

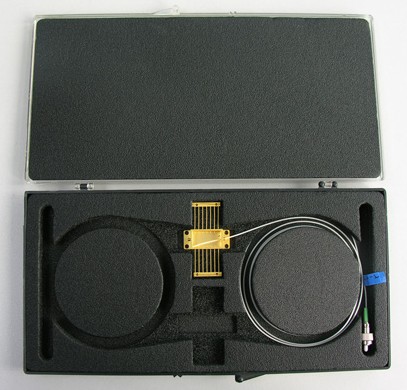

TYPE:HP4-240-BTF for 14-PIN butterfly package
Dimension: 240mm x 120mm x 25mm
Inside Dimension: 235mm x 115mm x 20mm
Cover: Transparent
Body: Black |
TYPE:HP4-240-105
Outside Dimension: 240mm x 120mm x 25mm
Inside Dimension: 235mm x 115mm x 20mm
Cover: Transparent
Body: Black |
|
 |
 |
TYPE:HP4-240H-2
Outside Dimension: 240mm x 120mm x 25mm
(9.46" x 4.73" x 0.99")
Inside Dimension: 235mm x 115mm x 20mm
(9.26" x 4.53" x 0.79")
Cover: Transparent
Body: Black |
TYPE:HP4-240H-96
Outside Dimension: 240mm x 120mm x 25mm
(9.46" x 4.73" x 0.99")
Inside Dimension: 235mm x 115mm x 20mm
(9.26" x 4.53" x 0.79")
Cover: Transparent
Body: Black |

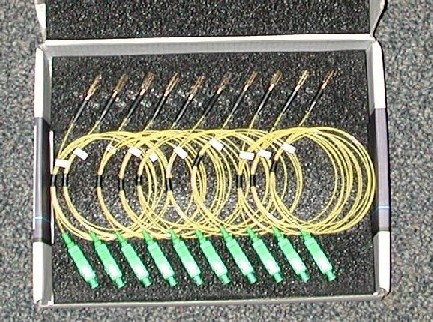

Customised anti-static carriers: HP4 - ESD |
|
|
 |
|
 |
 |
High
static shielding
performance from special shielding layer
Physical protection
No
shielding bag needed
Fits
any size component

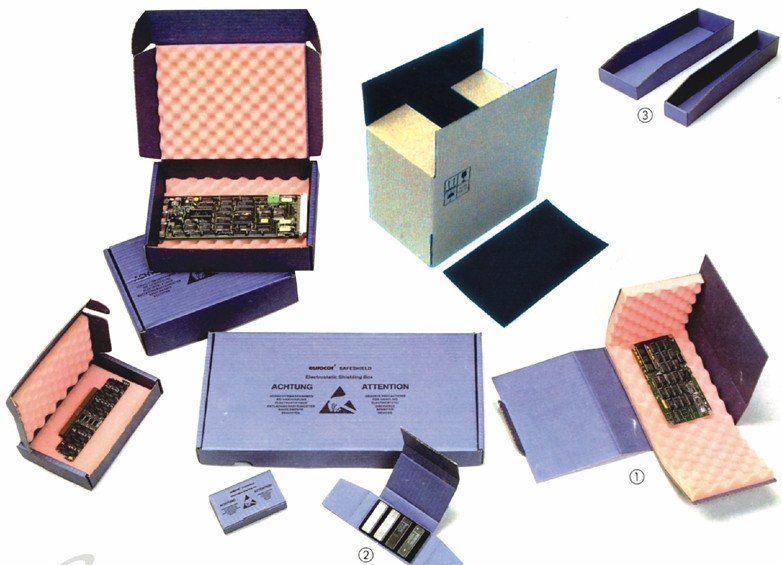

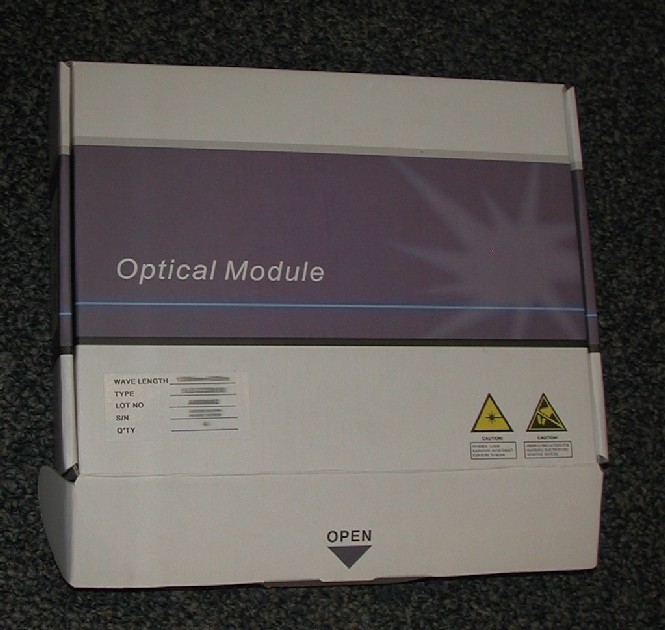

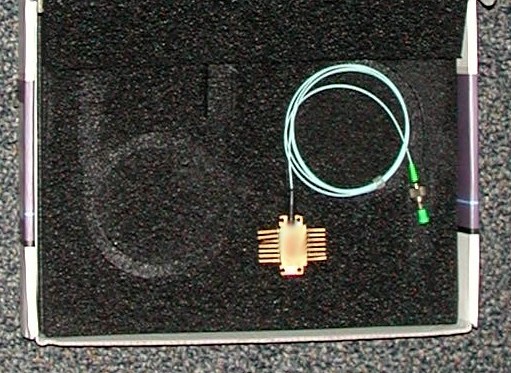

Flat-packaged
static-dissipative cardboard boxes with foam inserts
Typical dimension: 275mm x 174mm x 50 mm
|
|
Delicate Rod Packing |
|
TYPE: HP4-rod |
Safe, flexible and easy operation,
this innovative packing is designed for fragile rods
and devices of rod shape. The patented structure can protect
delicate parts during transport, processing, inspecting and
assembly

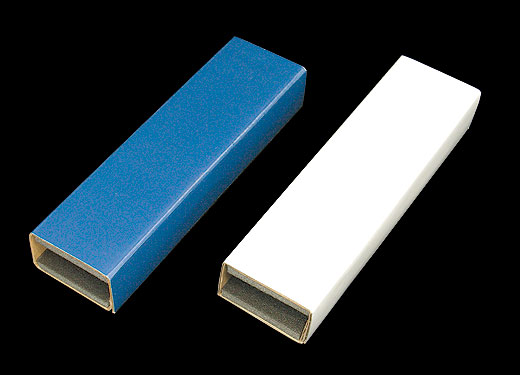

- This
glove case is designed for double protection of smart
laser carrying box
- It made
by paper box ( outside ) with plastic form insert
- The box
colour is optional
-
Customized logo printing on box is available upon request
at extra cost with min. order
|
|
TYPE: HP4-19038-T/BK
Overall size: 190mm x 38mm x 22mm
Max. length of rod : 160mm
Box Colour : Transparent/Black |
|

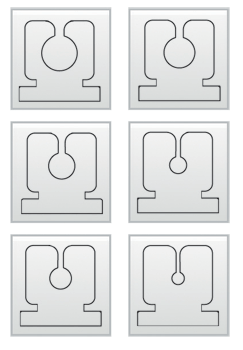

Part Number |
Holding Rod |
Overall Size |
|
SMY-D3 |
Dia. 3mm |
|
|
SMY-D4 |
Dia. 4mm |
L=18mm |
|
SMY-D5 |
Dia. 5mm |
W=8mm |
|
SMY-D6 |
Dia. 6mm |
H=17.5mm |
|
SMY-D7 |
Dia. 7mm |
|
|
SMY-D8 |
Dia. 8mm |
|
|

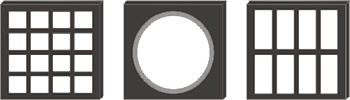

Customised Examples: |
|
 |
TYPE:HP8512
Dimension: 81mm x 81mm (3.19" x 3.19") |
|
|
 |
TYPE:HP240
Dimension: 235mm X 115mm (9.26" x 4.53")
D=84mm (3.3") d=76.2mm
(3")
|
|
|
 |
TYPE:HP240
Dimension: 235mm x 115mm (9.26" x 4.53")
Inside Dimension: 26mm x 7mm (1" x 0.276") |
|
|
 |
TYPE:HP8512
Dimension:
85mm x 85mm (3.35" x 3.35")
Inside Dimension: 81mm x 81mm (3.19"
x 3.19") |
|
|
