     Sensitive areas of standard large area InGaAs Photodiode series products are Ф1mm、Ф2mm、Ф5mm and 3mm × 4mm respectively. The products with other sensitive area, shape or package style can also be provided according to the demand of users. These products adopt InGaAs pin structure based on InP by MOCVD method and planar diffusing technology.
  Key Features   Applications
* High Response within1.0～1.65μm
* Low Dark Current
* Planar Structure
* Broad Spectral Response Range（0.65～1.65μm）
* Broad Dynamic Range
* High Reliability, High Uniformity
* Optical Measurement for Near Infrared
* Optical Power Measure
* Fiber Monitoring
* Spectral Measurement
* Microbeam Measurement
  Specification
Type PIN50312 PIN60412 PIN70412 PIN80412 PIN90512 Unit
 Parameter Min.Typ. Max Min.Typ. Max Min.Typ. Max Min.Typ. Max Min.Typ. Max -
 Sensitive Area Ф1.0 Ф2.0 Ф3.0 3×4 Ф5.0 mm
 850nm Responsibility(0V) 0.1  0.2 0.1  0.2 0.1  0.2 0.1  0.2 0.1  0.2 A/W
 1310nm Responsibility(0V) 0.8  0.85 0.8  0.85 0.8  0.85 0.8  0.85 0.8  0.85 A/W
 1550nm Responsibility(0V) 0.85 0.85 0.85 0.85 0.85 A/W
 Dark Current(-5V) 5  10 20  50 80  300 200 1000 nA
 Capacitance(-5V) 100  150 400  600 900  1200 1300 2500 pF
 Parallel Resistance(-10mW) 10  100 1  50 4  200 0.1  3 - MΩ
 Linear Range ±0.15 ±0.15 ±0.15 ±0.15 ±0.15 dBm
 HighestUnsaturated Power >+3 >+3 >+3 >+3 >+3 dBm
 Package Style TO-46/FC TO-5/FC TO-5/FC TO-5/FC TO-8 -
 Testing Condition T=25C
  Absolute Maximum Ratings
Type
PIN4-03-24
PIN5-04-24
PIN7-04-24
PIN6-05-24
Unit
 Reverse Voltage 20 20 10 10 V
 Optical Current 10 10 10 10 mA
 Forward Current 10 10 10 10 mA
 Power Waste 100 100 50 50 mW
 Operating Temperature -40~+85 -40~+85 -40~+85 -40~+85 C
 Storage Temperature -40~+85 -40~+85 -40~+85 -40~+85 C
 Jointing Condition 260℃，10sec.
  Mechanical Dimensions

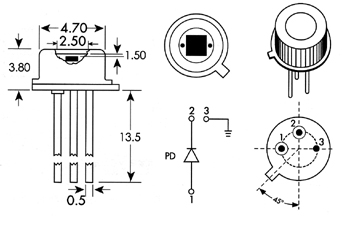

TO-46 Dimensional Diagram (Plane Window)

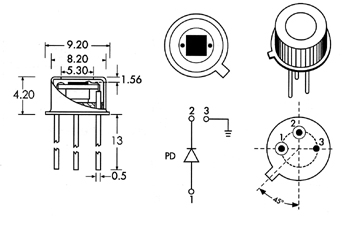

TO-5 Dimensional Diagram (Plane Window)

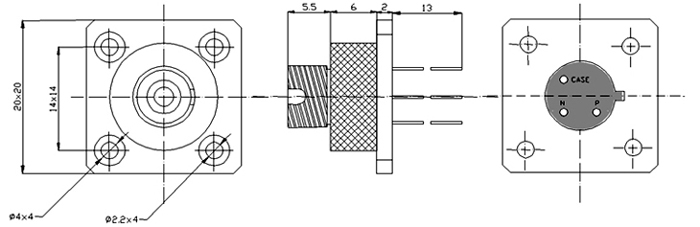

FC Outline Dimension

  Typical Performance

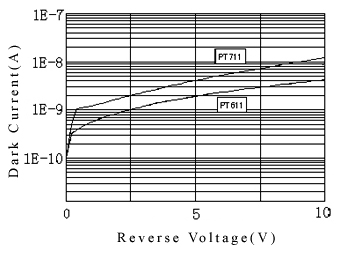

Id -Vr Characteristic Curve
C-V Curve

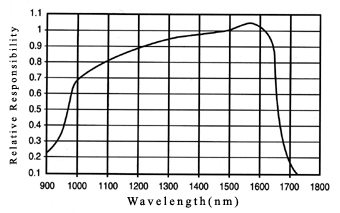

Typical Spectral Response

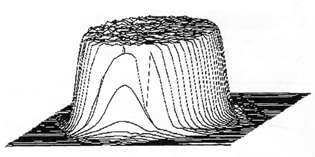

Responsibility Surface Distribution
  Safety Information
1. Protection of the product should abide by precautions of electrostatic sensitive organ.
2. When sealing pins soldering irons should be grounded to avoid breakdown.
3. Pins should avoid bend or twist which will bring break or damage.
4. The ferrule of connector is easy to be stained. If necessary, it could be cleaned by alcohol before using to keep high response.
